300MW+ 650NM red high power burning laser diode module

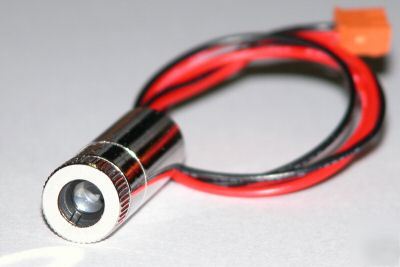

300mW+ 650nm Red Burning Laser Diode Module with Adjustable Lens
There are countless uses for a small compact Red laser, such as HOLOGRAPHY, LASER LIGHT SHOWS, Medical, etc...
It can light cigarette, punch black vinyl.
Long die open can laser diodes are rated for Class IIIb 300mW+ @650-670nm CW extract from new(never used) DVD Bunner Driver.
This long die open can diode have been probed to be very stable at high power output ranging from 300mW+.
This is long die open can diode so they are extremly fragile therefore must very careful to open lens and must use proper heat sink for high power drive.
The ideal use of this open can diode is 250mW CW at 420mA with acrylic lens( 300mW with glass lens).
This module used acrylic lens but it is possible order optional glass lens at $12.
Don't reply to email, some email not arrive and can erase with spam mail.
For order optional Driver and/or glass lens, please "request total" from pay now window before pay.
Optional 417mA output switch mode constant current driver 6-15V input - $30(need 1-3 day for OEM make).
Also can order other constant curret value from 50mA to 1.5 A- Ask before order(can set to nearly order value-fixed).
Switching power supply(100-220V input +5V, -5V output AC-DC Converter) for this driver(no casing like this module) can purchase at additional cost $20.
For See Laser Photo visite http://Zet.Biz
