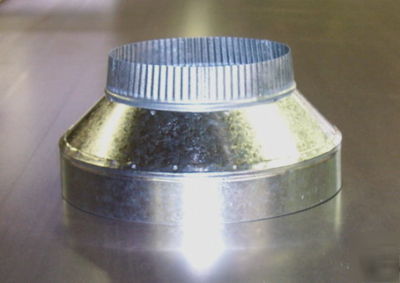

> * 20" in x 16" out 24 ga galvanized vent duct reducer
* 20" in x 16" out 24 ga galvanized vent duct reducer
* We fabricate reducers with Inlet diameters from 5" to 30", in stainless steel, and different gauge thicknesses. We will make just about any size you want.
*These are typically found elsewhere in thinner 28 gauge.
**Made of Galvanized steel with a G90 rating. G90 is a grade of galvanized coating produced to ASTM A653 specifications. It has .90 oz/sq ft. of zinc overall, .45 oz/sq ft. per side for excellent corrosion resistance and longer service life.
Most HVAC is made with the lesser G60 coated metal.
Deduct approximately 1-1/2" in length when assembled. This item is made from G90 galvanized steel in heavier 24 gauge for rust resistance and long life.
- We Specialize In Small Runs
- One Part Orders Processed Cheerfully
- We Accommodate Rush Orders
SERVING INDUSTRY FROM COAST TO COAST FOR OVER 25 YEARS
IF YOU WOULD LIKE A QUOTATION = = = PLEASE SEND YOUR REQUEST FOR QUOTE WITH YOUR CAD* DRAWINGS AND / OR OTHER SPECIFICATIONS VIA EMAIL OR FAX.
ARE YOUR IMAGES IN BMP, JPEG, PDF OR DOC FORMATS?
HAVE ONLY AN IMAGE ON PAPER?
. SEND US YOUR IMAGE BY US MAIL, FAX, OR EMAIL.
WE CAN CONVERT IT TO MAKE YOUR PARTS.
Additional cost may apply for conversion.
WE CAN IMPORT DRAWING FILES SENT AS ATTACHMENTS TO EMAIL IN THE FOLLOWING FORMATS:
CNC PUNCHING - AMADA VIPROS 33 TON HYDRAULIC TURRET PUNCH
26 GAUGE TO 12 GAUGE SHEET MAX. 48 X 120 WORKPIECE
10 GAUGE TO 1 / 4 THICK MAX. 48 X 96 WORKPIECE
CNC BRAKE FORMING - AMADA RG-100L HYDRAULIC PRESS BRAKE
26 GAUGE TO 10 GAUGE X 120 LENGTH (10 FT.)
1/8 , 3/16 , 1 / 4 THICK TO 120 LENGTH (10 FT.)
3/8 THICK TO 84 LENGTH (7 FT.)
1 / 2 THICK TO 48 LENGTH (4 FT.)
CAD / CAM CONVERT YOUR PAPER DRAWINGS INTO DIGITAL CAD FILES
IMPORT / EXPORT DIGITAL FILES TO OTHER FORMATS
PUNCHING, MARKING, DRILLING, TAPPING, COUNTERSINKING, ROLLING, CUTTING, SAWING, SHEARING, GRINDING, POWDER COATING, PAINTING .
WILL-CALL ORDERS ARRANGED AT OUR SHOP
DELIVERY VIA OUR TRUCK WITHIN A 60 MILE RADIUS OF OUR SHOP. REQUEST QUOTE TO INCLUDE DELIVERY CHARGE.
AMADA VIPROS 30 TON CNC HYDRAULIC TURRET PUNCH
AMADA RG-100L CNC PRESS BRAKE
CNC PLASMA TABLE 8 FT X 20 FT
HYPERTHERM HT2000 PLASMA 1 CAPACITY IN MILD STEEL
HYPERTHERM HD3070 HIGH DEF PLASMA 1 / 2 CAPACITY IN MILD STEEL
PUNCHING CAPACITY 120 TON 1-1/2 DIA. HOLE IN 1 THICK CARBON STEEL
SHEARING CAPACITY 1 / 2 THICK X 24 WIDE FLAT BAR
UP TO 1 THICK X 12 WIDE FLAT BAR
ANGLE SHEAR 90 DEGREE UP TO 6 X 6 X 1 / 2 THICK
CHANNEL SHEAR 2 ADJUSTABLE TO 6
ROD SHEAR ROUND 1 / 4 TO 1-1/4
PIPE NOTCHING 3 / 4 , 1 , 1-1/4 , 1-1/2 , 2 SCHEDULE 40 I.D.
HOT ROLLED STEEL SHEET AND PLATE
GALVANIZED STEEL SHEET G90 PRIME
STAINLESS STEEL SHEET IN B, #4, #8, AND MIRROR FINISH
STAINLESS STEEL PLATE IN B FINISH
ALUMINUM SHEET AND PLATE IN 3003, 5052, AND 6061
LOCATED IN SOUTHERN CALIFORNIA AND SERVING THE 48 CONTIGUOUS UNITED STATES SINCE 1979.
EMAIL: ****@msn.com <=PLEASE CLICK HERE TO SEND US
YOUR DIGITAL FILES BY EMAIL ATTACHMENT.
Send Your Request For Quote, Including the name of your city and ZIP CODE, With Your Drawings And / Or Other Specifications NOW For Quick Response.
