8 digt 5X7 dot matrix alphanumeric programmable display
Up for sale is 1 OSRAM PDSP-1881(Yellow) 8-Character Alphanumeric Programmable Display
This Display is used, but was cleanly removed from a socket, and was tested. The display comes with a 7 day DoA warranty.
The PDSP1881 (Yellow) is an eight digit, 5 x 7 dot matrix, alphanumeric Programmable Display. The 4.70 mm (0.180 ) high digits are packaged in a rugged, high quality, optically transparent, 7.62 mm (0.300 ) lead spacing, 30 pin plastic DIP. The on-board CMOS has a built-in 128 character ROM. The PDSP1881 also has a user definable character (UDC) feature, which uses a RAM that permits storage of 16 arbitrary characters, symbols or icons that are software-definable by the user. The character ROM itself is mask programmable and easily modified by the manufacturer to provide specified custom characters. The PDSP1881 is designed for standard microprocessor interface techniques, and is fully TTL compatible. The Clock I/O and Clock Select pins allow the user to cascade multiple display modules.
Eight 4.70 mm (0.180") Dot Matrix Characters in Red, Yellow, High Efficiency Red, Green, or High Efficiency Green Built-in 128 Character ROM, Mask Programmable for Custom Fonts Readable from 2.5 meters (8 Feet) Built-in Decoders, Multiplexers and Drivers Wide Viewing Angle, X Axis 55 , Y Axis 65 Internal or External Clock End Stackable Dual-In-Line Plastic Package Read/Write Capability 16 User Definable Characters
Individual Flashing Character Full Display Blinking Multi-Level Dimming and Blanking Clear Function Self Test
Datasheet is available here: http://catalog.osram-os.com/media/_en/Graphics/00036139_0.pdf

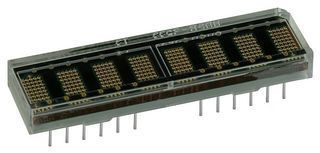

Please note: This is a stock photo(For a better refrence see datasheet above).
