> 4"union horiz table type boring mill, 51X57TBL, 6MT
4"union horiz table type boring mill, 51X57TBL, 6MT

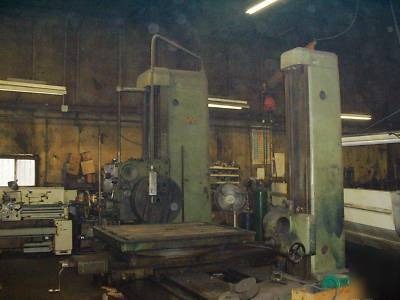

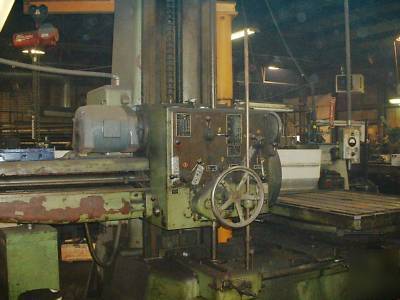

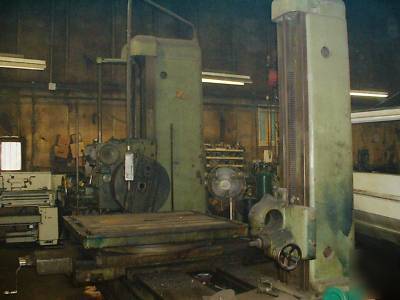

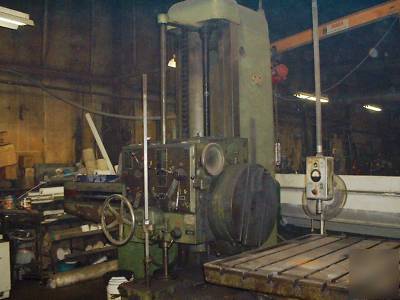

1-Used 4 Union Table Type Horizontal Boring Mill
Spindle Diameter........................................................... 4
Spindle Taper................................................................ 6MT
Spindle Speeds, 18 steps................................................ 5-500
Spindle Travel............................................................... 34
Spindle Feeds................................................................ .03-5 mm/rev
Table Size...................................................................... 51 x 57
Cross & Longitudinal Feeds........................................... .24-40 mm/rev
Rotary Table Rotation.................................................... 360
Cross Table Travel......................................................... 48
Longitudinal Travel, without support............................. 84
Longitudinal Travel, with support.................................. 70
Vertical Travel of Head................................................. 40
Facing Head Feeds......................................................... .24-40 mm/rev
Main Motor.................................................................... 9.2 Kw, 380/220V, 3 Ph
25 Facing Head, Outboard Support, Rotary Table, 10 6 Boring Bar, Box of Misc Tooling, Pendant Control
Price FOB, Orage City Ia........................................... $29,500.00
