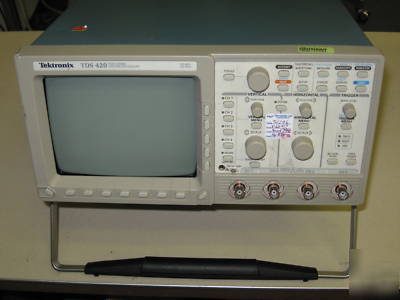

Tektronix TDS420 150MHZ 4CH digital oscilloscope
Tektronix TDS 420 4CH Digital Oscilloscope
* Simultaneous Channels 4 ch
* Simultaneous Maximum Sampling Rate/ch 100 MSa/s
sampling rate 100 MSa/s Max.
* Single Shot bandwidth 40 MHz
Record Length 15000 pt/sec
Vertical Sensitivity 1 mV/div
* Maximum Vertical Sensitivity 10 V/div
* Main time base - lowest 1 ns/div
* Main time base - highest 20 s/div
* Minimum Glitch Trigger 10 ns
* Display Type CRT Monochrome
* Display Update Rate 150 wv/sec
