Hp agilent E5380A high density logic analyzer probe

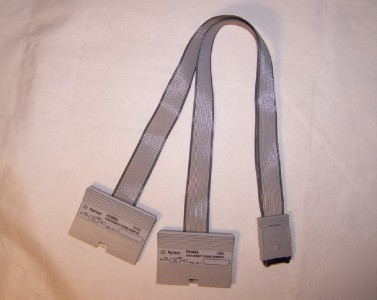

hp Agilent E5380A High Density Logic Analyzer Probe
Condition: Excellent physical condition. 30 days warranty, please see Term of Sale for more detail.
The Agilent E5380A Mictor probe provides a convenient and reliable connection to your target through a Mictor connector designed into your target. Route your signals of interest to the location containing the Mictor connector and when you are ready to measure these signals simply plug-in the Mictor probe. These probes can be used with a support shroud in environments where accidental unplugging of the probe is a concern. This probe can be used with any Agilent logic analyzer with a 90-pin cable connector.
34 channels, single-ended clock and data.
Small, 3.0pf, equivalent load capacitance.
Capable of data rates up to 600Mb/s (maximum rate dependent on analyzer used).
300 mV p-p minimum signal amplitude.
Small connector is easy to incorporate into your design Agilent number 1252-7431 or AMP number 2-767004-2.
Support shrouds available for board thickness to 0.120 inches
