Eg&g 5209 lock-in amplifier single phase high perform.

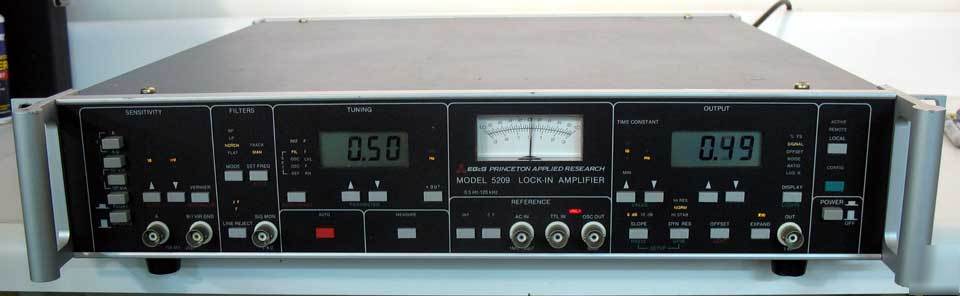

EG&G 5209 Lock-In Amplifier Single Phase High Performance
NIST Traceable Calibrated/Certificate, 90 Day Warranty
Voltage: Single-ended or true differential
Voltage: 10 nV to 3 V (with output expand)
Current: 10-6 A/V, 10-8 A/V conversion
Voltage: 5 nV/ Hz at 1 kHz
Current: 13 fA/ Hz (10-8 A/V) at 1 kHz
Frequency Response: 0.5 Hz to 120 kHz
Dynamic Reserve: 130 dB (max)
Time constant 100 s, 1 ms to 3000 s
Roll-off 6 or 12 dB/octave
Voltage: 0 to 2 V rms (1 mV steps),0 to 5 V rms (software only)
Frequency: 0.5 Hz to 100 kHz
Auxiliary Control: 4 ADC, 2 DAC
Interface: RS232, GPIB (IEEE-488)
Calibrated to meet manufacturer's specifications
5 day ROR minus s/h both ways.
Operators/Users manual on CD-ROM
