20'X1/8" bertsch initial-type plate bending roll #23817

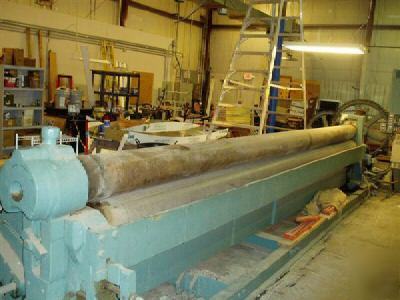

20' x 1/8" BERTSCH INITIAL-TYPE PLATE BENDING ROLL
New 1957, Serial No. 8888, Model 9
Plate Bending Capacity.................. 20' x 1/8"
Plate Bending Capacity, Mild Steel...... 16' x 3/16"
Top-Roll Diameter....................... 10.5"
Bottom-Roll Diameter.................... 10.5"
Rear-Roll Diameter...................... 10.5"
Main Drive Motor, HP/RPM................ 10 HP/1130 RPM
Rear Adjusting Motor, HP................ 7.5 HP
Weight Approximately.................... 31000 LBS
