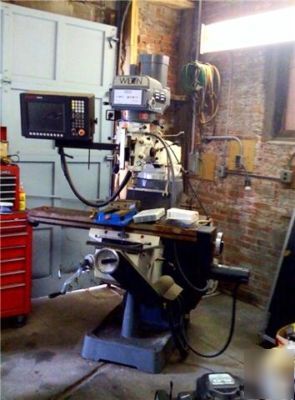

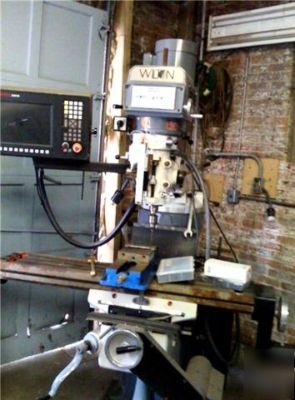

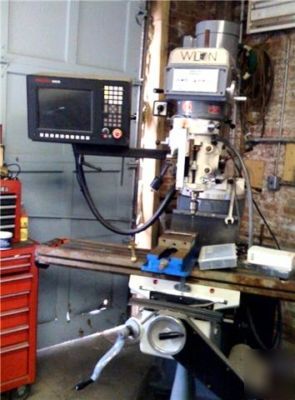

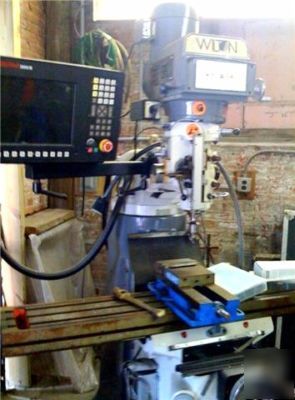

Wilton vertical knee milling machines


Wilton Vertical Knee Milling Machines
Wilton is a recognized industry leader in the milling machine business. The milling machines
Number of Spindle Speeds. Variable

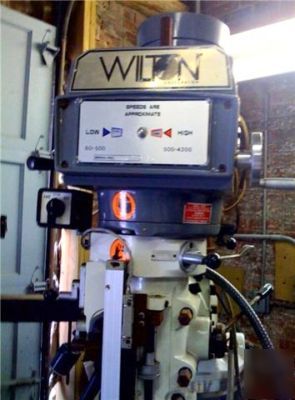

Range of Spindle Speeds (RPM) 60 - 4,200
Down feed of Spindle (per/rev/in.) 0.0015, 0.003, 0.006
Head movement 90 L to R, 45 F to B
Distance Spindle to Table (max/in.) 18-3/8
Distance Spindle to Column (min./in.) 6-3/4
Distance Spindle to Column (max/in.) 19
Collet Capacity (in.) 1/8 - 7/8
Longitudinal Table Travel (X-axis) 26-3/4
Cross Table Travel (Y-axis) 12
T-slot Number and size (in.) 3 and 5/8
Maximum Weight of Work piece (lbs.) 700
Travel of Knee (in.) (Z-axis) 16
Overall Dimensions (in/W x D x H) 65-1/2 X 63 X 80
