Vexta speed controller brushless motor gearhead control


Vexta Brushless DC Motors w/ Controllers
* Motor Part Number: AXHM230KC-GFH
* Gearhead Part Number: GFH2G10
* Rated Speed (after gearing): 10-250 RPM
* Continuous Torque (after gearing): 9.7 lb-in
* Controller Power Input: 24 Volts DC
* Speed Controlled Via: On-Board Potentiometer / External Potentiometer / 0-5 Volt Analog Signal

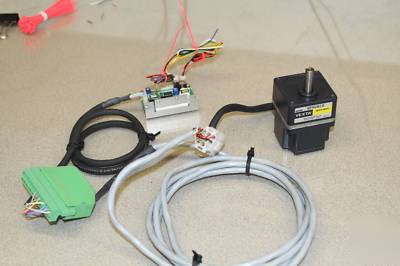

Here are some brushless Vexta motors with speed controllers. These are 30 watts motors with 10:1 integrated gearheads. After gearing the shaft speed is 10-250 RPM. The motors have an output torque of 9.7 in-lb after gearing. The speed can be varied using the controllers built in potentiometer, a separate external poteniometer, or a 0-5 volt analog signal. The controllers also have a direction input and an analog speed control output for slaving multiple controllers together or notifying a host controller. We have many identical sets of these available. This hardware is in excellent shape. It was pulled from a board conveyer line. The price is per set with motor, controller, and all cables as shown. Guaranteed not DOA with a 14 day right of return. Full specs on the controller and motors can be obtained here.
http://site.motadistribution.com/Brochures/orientalmotor/SpdAxh.pdf
