Usb to uart (serial) - FT232 chip

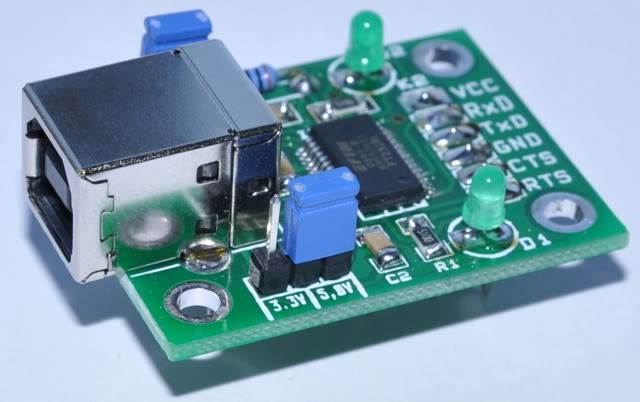

This FT232RL based module provides USB connection to any project with a UART device (found on almost every microcontroller based system).
Fast and easy solution for all your PIC, AVR, 8051, etc projects. Using their internal UART.
When plugged to a computer, the operating system detects this module as an extra serial port.
(Screen shot from windows 7 device manager)
* Fully assembled and tested.
* 3.30 to 5.25V single supply operation.
* 5.0 or 3.3V logic interface.
* TxD, RxD, CTS and RTS signals converted.
* Can work with 5V from USB.
* Can act as 5V power source to target device (must not exceed 100 mA).
* 2 LED for RxD and TxD activity.
* USB-B connector on USB side.
* 6 pin header on UART side:
1. VCC (Power supply: 3.30 to 5.25V or USB 5V out to target board).
3. TxD (Transmited Data).
6. RTS (Request To Send).
* UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd/even/mark/space/no parity.
* Data transfer rates from 300 bps to 1 Mbps.
* Device drivers available (on http:// /Drivers/VCP.htm) for most operating systems:
* Windows Server 2008 64 bit.
* Windows Server 2003 64 bit.
* Linux (kernel 2.4.20 and above).
* Add USB connection to devices without USB support.
* Interfacing MCU/PLD/FPGA based designs to USB.
USB 5V used as power supply (also connects the USB 5V to VCC pin).
The module acts as a power supply source to target device.
Module work with 3.30V I/O logic levels (RxD, TxD, CTS, RTS)
Module work with 5.00VI/O logic levels (RxD, TxD, CTS, RTS)
USB used as power source for module and target circuit (JP1 closed). Target circuit must not sink more than 100 mA.
