Standard tig welding cold wire feed machine - torch kit
Standard Cold Wire Feed Machine.
For complete installation of a Cold Wire TIG System, you need both the
Cold Wire Feeder and a TIG torch (hand held or machine mounted) with
cold wire TIG capabilities. The Cold Wire TIG System works independently
of a standard TIG power supply using normal TIG welding parameters.

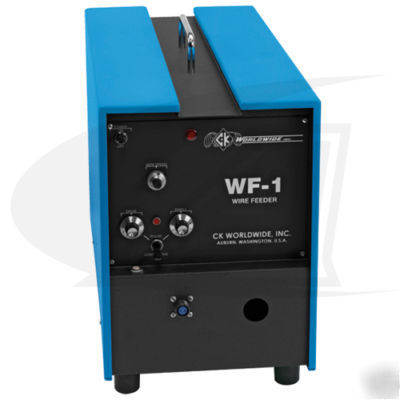

The WF-1 feed unit is designed for use with CK "CWH" series hand torches
for semi automatic welding applications. The WF-1 has an ON/OFF switch,
pilot light, wire feed control, pulse/continuous feed switch, pulse wire on and
off timers, and a remote switch receptacle.
Drive Role: 20-35DR, Wire Size: .023" to .030"
Drive Role: 30-45DR, Wire Size: .030" to .045"
Drive Role: 45-564DR, Wire Size: .045" to 1/16"
TIG/GTAW Cold Wire Feed Benefits:
Automates adding of filler metal in TIG Welding.
All weld parameters can be duplicated.
Dual Groove Drive Roll system accepts multiple wire sizes.
Cabinet keeps filler wire clean.
Makes fully automatic machine TIG welding possible.
Results are consistent and high quality welds
Note: Choose the Drive Roll Wire Size when ordering.
115V AC (220V AC 50hz EU motor available - (specify when ordering)) Single phase, 50/60 hz. Height: 15" (38.1cm) Width: 10" (25.4cm) Length: 21" (53.3cm)
Motor Type: DC Permanent Magnet
Motor Rating: 1/3 hp @4000 rpm
Filler Wire Spool Size: 12" (30.5cm)
Filler Wire Size:.023 (.5mm), .030 (.8mm), .035" (.9mm), .045" (1.1mm) and 1/16" (1.6mm)
Wire Speed Range: 0 - 500 ipm (0 - 1250 cm)
Feed Time (pulsed mode): Continuously variable
Dwell Time (pulsed mode): Continuously variable
