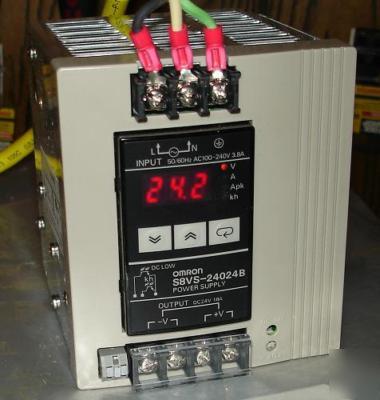

Omron S8VS-24024B 24 volt dc 10 amp power supply


Omron S8VS-24024B 24 Volt DC 10 Amp Power Supply. New power supply and bench-tested, never installed in the field. Sorry, but no box.
Tested on bench with 24v position sensing devices only, never installed or used in the field, clearing my unused Omron stock. Guaranteed not to be DOA.
100 to 240 VAC (85 to 264 VAC)
50/60Hz (47 to 63 Hz Single-phase)
0.5 mA Max. (At 100 VAC input)
1.0 mA Max. (At 200 VAC input)
25 A Max. (At 100 VAC input (For cold start at 25 CEL))
50 A Max. (At 200 VAC input (For cold start at 25 CEL))
(The output voltage may increase beyond the allowable voltage range (up to +15% of the rated voltage) depending on the operation of the output voltage adjuster (V.ADJ). When adjusting the output voltage, check the output voltage of the Power Supply and be sure that the load is not damaged.)
2.0%(p-p) Max. (Under the rated I/O conditions.)
Static input variation influence
0.5% Max. (At 85 to 264 VAC input, 100% load)
Static load variation influence
1.5 % Max. (At rated input, 0 to 100% load)
Ambient temperature variation influence
0.05%/ CEL Max.(At rated input/output voltage)
1000 ms Max. (At rated input/output voltage)
20 ms Min. (At rated input/output voltage)
Inverted L voltage drop, automatic reset
Operated at 120% Min. of the rated output voltage, Shut-off/ Reset the power by turning it back (OFF time: at least 3 min)
Yes (Resolution: 0.1V/ Accuracy: +- 2% (percentage of output voltage value, +- 1 digit Max.)
Yes (Resolution: 0.1A/ Accuracy: +- 5% F.S. (percentage of rated output current value, +- 1 digit Max.))
Yes (Resolution: 0.1A/ Accuracy: +- 5% F.S. (percentage of rated output current value, +- 1 digit Max.)/ Minimum detectable signal width: 10ms (20ms Max.))
Maintenance forecast monitor output
Total run time monitor indication
Yes (Resolution: 1kh/ Setting range: 1 to 150kh)
Yes (open collector output), 30 VDC Max., 50 mA Max., Sinking (NPN)
Yes (Resolution: 0.1V/ Setting range: 18.5 to 26.3 V)
Yes (Up to 2 Power Supplies with external diode)
Standard No.: UL508(Listing), UL60950-1
Standard No.: CSA C22.2 No.14, CSA No.60950-1
Standard No.: EN50178, EN60950-1
Applicable standard (EC Directive (EMC Directive))
Emission Enclosure: Conforms to EN61204-3 ClassA
Emission AC mains: Conforms to EN61204-3 Class A, Based on FCC Class A
Standard No.: VDE0160, VDE0805 Teil 1
Operating: -10 to 60 CEL (Refer to the Derating curve)
(with no icing or condensation)
Between all inputs and all outputs/alarm outputs: 3 kVAC for 1 min (Detection current: 20 mA)
Between all inputs and PE terminals: 2 kVAC for 1 min (Detection current: 20 mA)
Between all outputs/alarm outputs and all PE terminals: 1 kVAC for 1 min (Detection current: 20 mA)
Between all outputs and all alarm outputs: 500 VAC for 1 min (Detection current: 20 mA)
Between all outputs/alarm outputs and all inputs/PE terminals: 100 M Ohm Min. (at 500 VDC)
10 to 55 Hz, 0.375mm single amplitude for 2 h each in X, Y, Z directions
150 m/s2, 3 times each in +- X, +- Y, and +- Z directions
Note: Do not use the Inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but the rise in the internal temperature of the Power Supply may result in ignition or burning.
