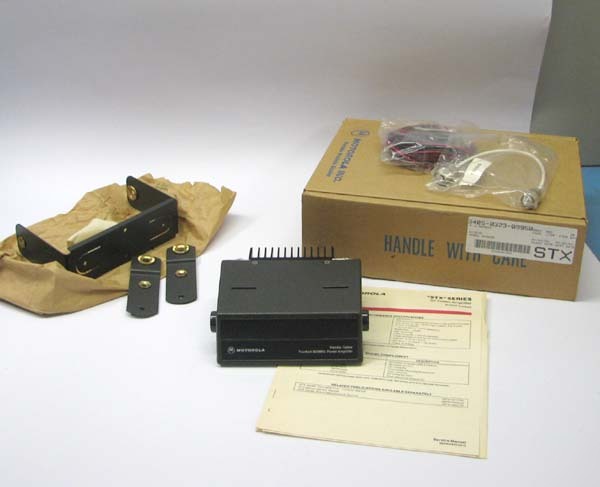

NEW Motorola STX 800 MHz 15 Watt RF Power Amp Radio DC
* Frequency Range: 806 - 870 MHz
* RF Power Output: 15 W minimum with the low power or high power STX radio
* Input Drive Acceptance (At PA Port): Low Power (0.7 to 1.25 W) High Power (1.9 to 3.15 W)
* Operating Voltage: 13.6 Vdc (nominal)
* Spurious Emissions: Better than -59dBc
* Input/Output Impedance: 50 ohms (nominal)
* Current Drain:
* Receive Insertion Loss: 1.5dB (includes 0.5dB for 12" interconnect cable)
This item is NEW in manufacturer's box.
