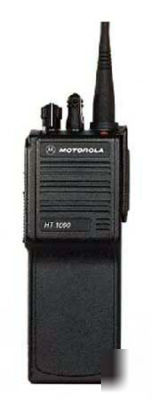

Motorolla HT1000 vhf radio
The HT1000TM portable series offers you small, rugged, economically packaged radios loaded with features never before offered in a Motorola HT portable product. In addition to the size, durability, and affordable advantages the HT1000TM radio offers, it also includes programmable function controls and radio-to-radio cloning for increased user flexibility. Of course, the HT1000TM radio family incorporates the quality and reliability you have come to expect from Motorola the leader in FM two-way radio communication.
Standard Battery (NiCd, 1200 mAh, 7.5V - NTN7143)
Standard Charger (110 Volt Single Unit Compact Slow Rate - NTN1174)
Standard Belt Clip (4205638V09)
Standard Antenna (VHF must order option / UHF 8505241U05 / 800 MHz 8505241U03)
Standard Battery (NiCd, 1200 mAh, 7.5V - NTN7143) Standard Charger (110 Volt Single Unit Compact Slow Rate - NTN1174) Standard Belt Clip (4205638V09) 2.5" Belt Clip (HLN9714) Standard Antenna (VHF must order option / UHF 8505241U05 / 800 MHz 8505241U03) One Year Warranty
Battery Life (based on 5/5/90 duty cycle) -8 11 hours
Ruggedness -Mil Spec 810 C, D, E
Dimensions H x W x L (with standard battery) -6.30" x 2.34" x 1.49"
Weight (with standard battery) -18.3 oz.
Frequency Ranges -VHF (136-174MHz)UHF (403-470, 450-520MHz)800MHz (806 870MHz
With "Full Band VHF" a single model can operate from 136 to 174 MHz. The entire UHF band is covered with 2 models, and the 800 MHz band needs only one. Universal Connector A weather-sealed connector allows all reprogramming, tuning and testing to be performed without opening the radio. Radio-to-Radio Cloning Using a simple cloning cable you can duplicate one radio s operating parameters into another HT1000 portable of the same sub-band. Channel Scan Monitoring Allows the radio to scan all of its operating channels. Channel Scan is capable of scanning for PL, DPL, Carrier Squelch, Quik-Call II and Stat-Alert Selective Call, and can be configured for Non-Priority or Single Priority operation. The HT1000 ra Smart PTT-Busy Channel Lockout Prevent users from "talking over" each other by restricting the user from transmitting if activity is detected on the channel. The radio will generate a continuous tone upon PTT depress if a transmission is not being allowed. Inhibit Transmit can be a MDC1200 STAT-ALERT Signalling Unit ID and Emergency Each HT1000 radio can be programmed to send a unique digital identification code at the beginning of each transmission, at the end, or both. This ID may be combined with an emergency alarm that is activated by an emergency butto Adjustable Power Levels Saves battery life Quik-Call II Signalling Selective Signalling Decode Provides another convenient way for the dispatcher to initiate a voice page message to an individual or a group. When the user receives a Selective Call, the radio will generate alert tones, flash the green LED, and will unmute Low Battery Alert The LED indicator will blink red if the battery falls below a specified voltage level while in the transmit mode. The radio can also be programmed to sound an alert tone if the low battery condition is detected during transmission
Radio as a new antena, a batery clip and a batery, they have been tested and work.
