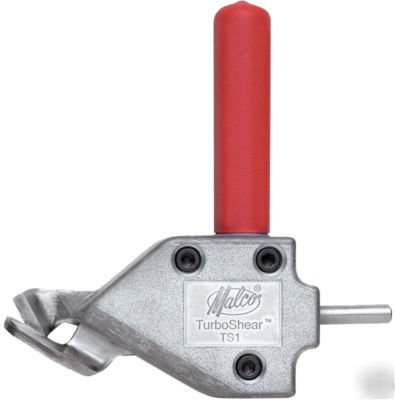

Malco TS1 turbo shear drill attatchment - sheet metal
The time saving Malco Turbo Shear TS1 inserts directly into the chuck of a standard 1200 rpm A/C or cordless drill. It's that easy to convert your power drill into a turbo shear. This rugged yet inexpensive accessory cuts straight and to the left and is capable of navigating tight curved patterns and squares in heavy 20 gauge galvanized steel. Blind cuts require only a 1/2" starting hole.
Cutting applications include both ferrous and non-ferrous sheet metals, metal roofing/building panels, vinyl, steel mesh, duct work and even the thick metal of furnace jackets, equipment enclosures and automotive body panels.
The Turbo Shear offset design keeps both hands away from the work surface. The jaws are replaceable and there is a drill clap option for one hand operation.
Drill Clamp for TS1 (optional)
What materials will the turbo shear cut?
The TS1 cuts 20-gauge (1.02 mm) galvanized steel (HVAC duct work, auto body panels), 24-gauge (.63 mm) non hardened carbon steel and stainless steel (metal roofing panels), 16-gauge (1.2 mm) aluminum (trim coil, flashing), and .050 inch (1.27 mm) copper (metal roofing, gutters).
TS1, Turboshear metal cutting series will make clean cuts throughout the range of thicknesses of material listed above. The tool will need to be adjusted when going from very thin to thick material and vice versa.
How do you adjust the tool to get the optimum cut?
TS1 - The clearance between the cutting jaws is adjustable in order to achieve the optimum cut for thick or thin material. To adjust, locate the 3/16 set screw on the back of the tool, towards the front of the tool near the jaws. Turn it clockwise to tighten the gap of the jaws for thinner material or counterclockwise to make the gap of the jaws larger for thicker material.
Picture above shown with optional Drill Clamp for one handed operation.
Optional Drill Clamp is part # TSDC and is sold separately.
