Garland convection oven electric full size model te-4

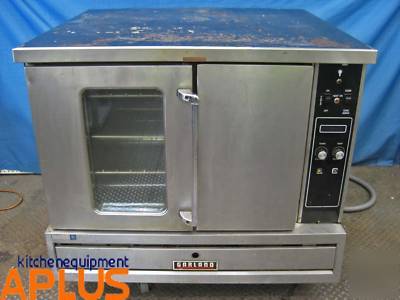

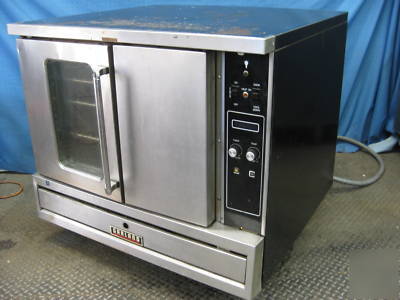

Garland Electric Convection Oven
- GENERAL: Unit construction shall be in accord with established standards and certified for construction and performance by industry regulatory agencies. Oven design shall permit independent operation and facilitate double oven stacking. Engineering design shall permit all servicing from front of oven.

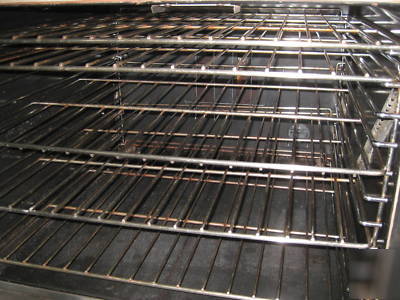

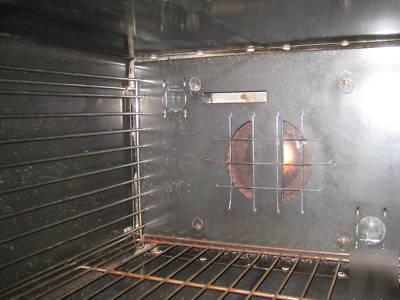

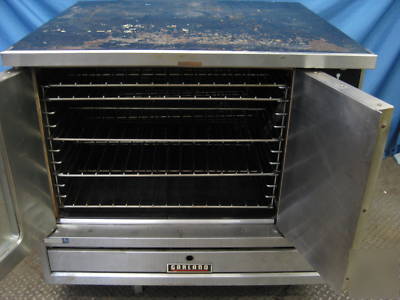

- OVEN CONSTRUCTION: Sealed cavity construction, heavy gauge die-formed steel. Large cove corners designed for smooth laminar circulation of heated air, radiating from heating elements. "Muffle Oven" cavity shall be completely encased in high density K-Fac insulation maximizing heat retention. Oven casing shall be designed with securely attached heavy gauge welded front frame, allowing exact oven door alignment. Door seals shall be of stainless steel and woven fiberglass to secure oven against leakage and maintain high humidity climate while cooking. Porcelainized oven interior and rear baffle shall be standard or optional extra, triplecoated catalytic porcelain continuous cooking which cleans as it cooks - it's highly recommended! The heat control sensing element shall be encased in a steel guard for protection, ensuring long life and to sustain performance efficiency.

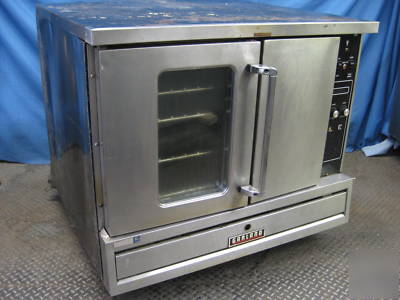

- DOORS: The 60/40 doors, operated by an insulated handle, shall open and close with ease. "60" door section provides maximum leverage; "40" door section automatically operates with minimum resistance resulting in long trouble-free life. Door hinges shall be equipped with oil-impregnated bronze-sleeve bearings for permanent lubrication, combined with heat-treated steel sprockets and large #41 roller chain shall reduce frequency of door adjustments under the most demanding conditions. "60" door shall be equipped with a large double-pane thermal window, centrally located for total visibility and minimum heat loss. Stainless steel doors shall be interlocked against snug-fitting door seals to ensure tight closure. Safety switch turns off fan when doors are opened.

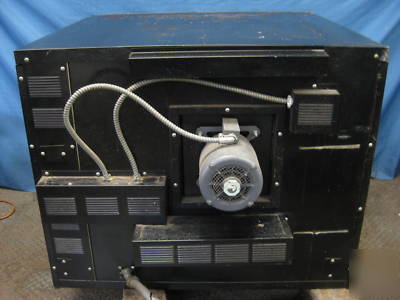

- MOTOR AND FAN: 3/4 HP self lubricating, sealed ball-bearing type. 208V or 240V, 60 cycle, single phase, shall have thermal overload protection.

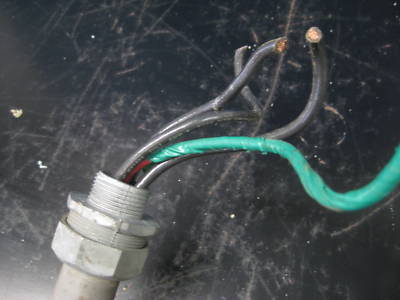

- HEATING ELEMENT: Oven shall be equipped with three (3) 3.33 kw Inconel sheathed heating elements providing a total of 11.0 kw per section. Protection of the electrical circuitry shall be provided for by circuit breakers located outside the heat zone, accessible from the front.
Dimensions: 60"(H) x 40"(W) x 42"(D)
