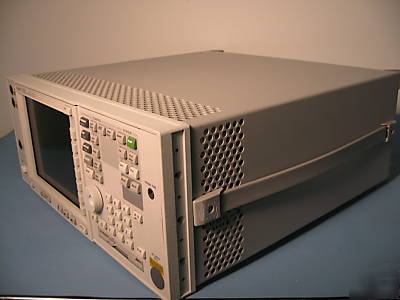

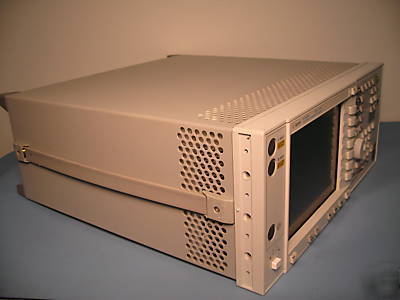

Agilent / hp E4406A 7MHZ-4GHZ vector signal analyzer
Fully Tested Clean and in Very Good Condition!
14 Day Inspection/Right of Return If not Fully Satisfied!!
The E4406A VSA transmitter tester is a full-featured vector signal analyzer suited for base station and mobile handset manufacturing,
with additional applications for design and development of wireless equipment. The E4406A VSA offers various power measurements
for multiple 2G, 2.5G, 3G, and 3.5G wireless communications formats with powerful one-button standard-based modulation analysis.
The affordable price makes it well suited for volume production. Extensive one-button measurement personalities, and optional baseband
IQ input provide unparalleled convenience for research and development applications.
The E4406A VSA is easy to use regardless of your level of expertise. Measurements are accessible at the touch of a button and are easily
configured with the simple, straightforward menu structure. The VSA comes standard with the following measurement capabilities: spectrum
(frequency domain) analysis, waveform (time domain) analysis, adjacent channel power (ACP), complimentary cumulative distribution function
(CCDF), channel power, occupied bandwidth, and link capability to the 89601A vector signal analysis software.
* Frequency range: 7 MHz to 4 GHz (RF input) and 5 Hz to 10 MHz
* Absolute amplitude accuracy at 1 GHz: 0.6 dB
* Displayed average noise level at 1GHz: -136 dBc/Hz
* Dynamic range (3rd order) at 1 GHz: 102 dB

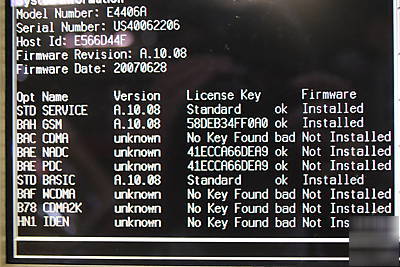

BAH: GSM measurement personality
BAE: NADC,PDC measurement personality

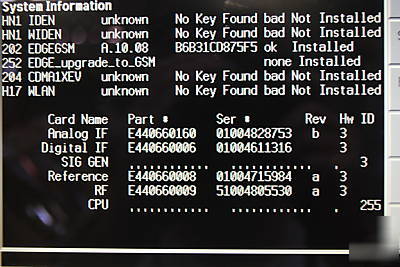

202: EDGE w/ GSM measurement personality
WARRANTY: 14 DAY ROR, 90 DAY WARRANTY!
