#2 copper awg , 4 wire chainflex® CF30 pvc wire cable


Price includes 19 feet of wire per roll
#2 Copper AWG , 4 Wire Chainflex CF30 PVC Wire Cable
PVC Standard Energy Chain cable, oil-resistant, flame-retardant
Conductor: Finely stranded bare copper wires, according to EN 60228
Conductor insulation: Mechanically high quality TPE blend

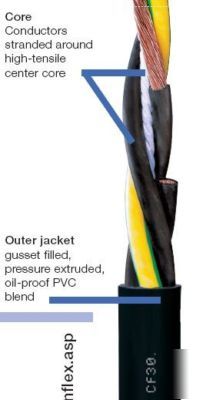

Conductor twisting: Conductors cabled with short pitch over a high-tensile-strength center core.
Outer jacket: PVC-based, low-adhesion blend, adapted to the requirements of the Energy Chain . Silicon-free
in compliance with PV 3.10.7 - status 1992. Color: black (RAL 9005).
Minimum bending radius, moving: 7.5 x outer cable diameter
Minimum bending radius, fixed: 4 x outer cable diameter
Permissible temperature, moving: +23 F to +158 F (-5 C to +70 C)
Permissible temperature, fixed: -4 F to +158 F (-20 C to +70 C)
Regulations: cRUus: UL AWM style for USA & Canada: 2570 80 C 1000V Flame Resistance: FT1, CE: CEI 20-
for high mechanical load requirements
preferably indoor applications, outdoor is acceptable for temperatures greater than +41 F (+5 C)
for freely suspended and gliding travel up to 328 ft (100m)
CF30-350-04 2 4 x 35 1.14 (29.0) 904
