Millermatic passport plus mig & spoolmate 100 907401

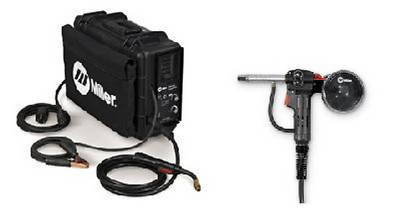

Miller Passport Plus Mig Welder
Miller Spoolmate 100 Spool Gun
Portability is number one when you have to go to the job - because it can't come to you.
The Millermatic Passport Plus contains all you need to MIG weld in one small lightweight packge.
The Millermatic Passport Plus , MIG welder is designed to satisfy the demands of the MRO, construction, fabrication and motor sports industries. It s also a great weekend warrior project welder. And now with upgrades to be able to hook up the Miller Spoolmate 100 Spoolgun to be able to weld aluminum in the field
* Portability is number one the Passport Plus contains all you need to MIG weld in one small, lightweight (45 lbs.) package. To be able to weld :steel, stainless steel, aluminum all in one unit.
* Self-contained gas cylinder provides 25 minutes of welding time. The cylinder holds 12 oz. of CO2. That s 25 ft. of weld on 3/16 thick material with .030 mild steel MIG wire. One empty cylinder is included with the system. (Note: the cylinder CANNOT be used with mixed gases).
* NEW PASSPORT PLUS Upgraded fron the regular Passport , now with the ability to hook up the new Miller Spoolmate 100 Spoolgun so doing aluminum in the field is easier than ever.
* Spoolmate 100 : Includes the Miller Spoolmate 100 Spoolgun for welding aluminum . Argon gas and an external regulator are need to weld aluminum with the spoolgun .
* Auto-Line provides state-of-the-art flexibility to the end user. The Auto-Line circuitry automatically connects to 115/230 VAC, single-phase power without removing the cover to re-link the welder. No longer is there a concern if you have the correct machine to match the shop or job site power.
* MILLER EXCLUSIVE! Multi-voltage plug allows you to connect to common 115 or 230 VAC power receptacles without the use of any tools choose the plug that fits the receptacle and connect it to the power cord.
* Durable cast aluminum feed head incorporates dual-groove, quick-change drove rolls and spring-loaded tension arm with calibrated tension knob; all designed to make setup easier and faster.
* Impact-resistant case provides strength and durability, protecting the internal components and welding wire.
* Handy side storage pouch for work cable and clamp, M-10 MIG gun, adaptors and power cable.
* Carries 8 inch spool of welding wire - convenient size spool for most wire types.
* High quality arc characteristics feature positive arc starts without popping and spatter, high stability, low spatter CO2 welding. With arc control you can select between a crisp arc characteristic weld, suited for mild steel or a softer characteristic suited for stainless steel and some mild steel applications requiring a softer arc.
* Dual gas supply selects between the internal CO2 gas supply when you re on the move or external bulk cylinder when you re in the shop or need mixed gas.
* Fan-On-Demand the fan only operates when the welder requires cooling saving power and keeping the inside of the power supply clean.
* Power cord and adapter plugs for 115V or 230V outlets
* 10 ft. (3m) M-10 MIG gun and cable assembly
* 10 ft. (3m) work cable and clamp
* One 12 oz. (paintball style) CO2 gas cylinder (empty)
* Two extra contact tips for .024 and .030 diameter MIG welding wire
* Dual-groove, quick-change drive rolls of .024 in or .030/.035 in MIG welding wire.
* Miller Spoolmate 100 Spoolgun
* Weld thickness 24 gauge to 3/8 mild steel (230V)
* Processes MIG or Flux Cored Arc Welding
* Input power 115 Volt, 20 Amps, 60 Hz single phase OR 230 Volt, 18 Amps, 60 Hz single phase
* Rated output 150 Amps at 21.5 Volts, 20% duty cycle (230 Volts input), 110 Amps at 19.5 Volts, 20% duty cycle (110 Volts input)
* Amperage range 30-140Amps (115 Volts), 30-180Amps (230 Volts)
