> Welding cable plug dinze type 35-50MM² (male connector)
Welding cable plug dinze type 35-50MM² (male connector)

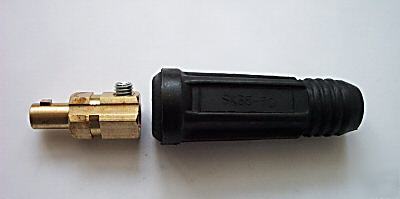

This Dinze-type cable plug (or male connector) has a 13mm diameter push-in fitting and is suitable for use with welding cable from 35-50mm . For copper-cored cable, that's a maximum of 400 amps, and for aluminium-cored cable approximately 300 amps. The connection block is brass, while the black insulation sleeve is rubber. There is a single grub screw for securing the conductive core in the connection block. This plug is manufactured to BS EN 60974-12.
