Sundstrand model a-12 rotary surface grinder

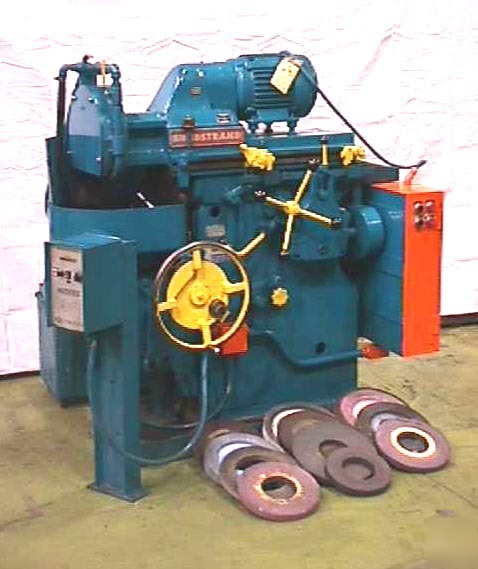

SUNDSTRAND MODEL A-12 ROTARY SURFACE GRINDER
Maximum Wheel Size: 15" x 3" x 5"
Maximum Distance Under Wheel Center: 15"
Grinding Head Slide Moves 8" Maximum Power Stroke
Or Manual With Adjustable Trip Dogs
Vertical Travel Of Rotary Table By Hand Or Power
13" Diameter Magnetic Chuck, Tilts In Or Out 12
500 Watt Electro-Matic Chuck Control
Vari Speed Chuck Control With Hi-Low Belt Pulley
Approximately (10) Extra Grinding Wheels
Approximately 30 Gallon Coolant Tank With Pump
5 HP, 220/440 Volt, 1745 RPM, 3 Phase Motor,
(Currently Wired For 440 Volts)
Also Known As A Sundstrand Arter Grinder Or An Arter Sundstrand Grinder
Approximate Dimensions Of Machine: 48" x 66" x 62" H
Approximate Dimensions Of Coolant Tank: 3' x 2' x 3' H
Approximate Total Weight: 3,500 Lbs.
These are hard to find! Rotary's have sold on the Net for $8,500.00 to $14,000.00 USD.
