> Mastech variable power supply HY3005 D3 0-30V/0-5A
Mastech variable power supply HY3005 D3 0-30V/0-5A

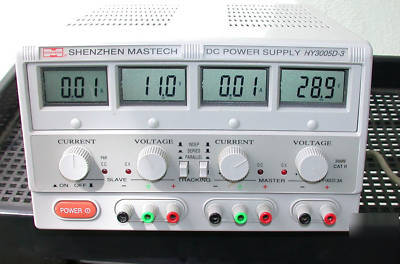

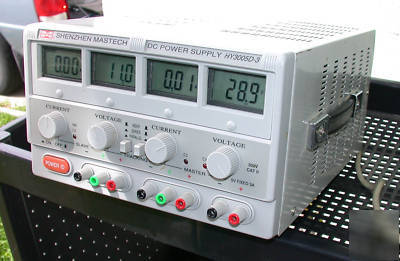

MASTECH VARIABLE POWER SUPPLY HY3005 D3 0-30V/0-5A
USED, I TESTED OUTPUTS WITH VOLTMETER AND THEY PUT OUT CORRECT VOLTAGE.
Info... From Web, I dont guaranty asccuracy
MASTECH HY3005D-3 is a brand new lab grade bench power supply. This high quality linear power supply has three outputs: two outputs are continuously adjustable at 0-30V DC and 0-5A, and the third output is fixed at 5V DC and 3A. What's more, the two outputs can be used either in independent, series or parallel mode, providing either two independent outputs, or one output with twice the voltage or twice the current output, up to 60V or 10A. The unit comes with 4 backlit LCD displays, providing accurate readout for the voltage and current value for both outputs. Please email me with any questions!
Dual adjustable outputs: 0-30V and 0-5A
Line regulation: CV <= 0.01% + 1 mV, CC <= 0.2% + 1 mA
Load Regulation: CV <= 0.01% + 3mV, CC <= 0.2% + 3 mA
Ripple noise: CV <= 0.5 mV RMS, CC <= 3 mA RMS
Protection: constant current and short-circuit protection
LCD reading accuracy: +/-1% for voltage and +/-2% for current
Environment: 0-40C, relative humidity < 90%
USED, appears to be working properly, however NO guaranty, NO returns...due to nature of item
