Latching relay board ( with pushbutton input )

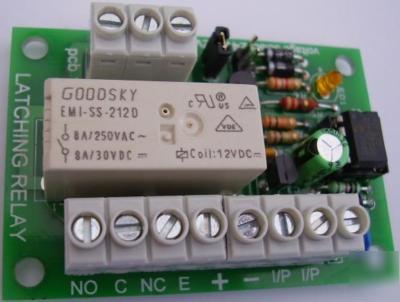

Latching relay board (with pushbutton input)
This latching relay board is triggered by a normally open pushbutton switch input (wired into i/p terminals).
With each pushbutton input, the relay will toggle on and off.
The board is polarised and suppressed (voltage reversal and back emf protection.)
The relay is double pole changeover and contacts rated at 8 amp 240v ac
Can be used for a wide range of applications - hobbies, camping, auto, industrial, fire & security etc.
Board permanent supply voltage is selected by jumper link 12 volt or 24 volt dc.
LED illuminates to indicate relay is activated



Latching relay board ( with pushbutton input )
