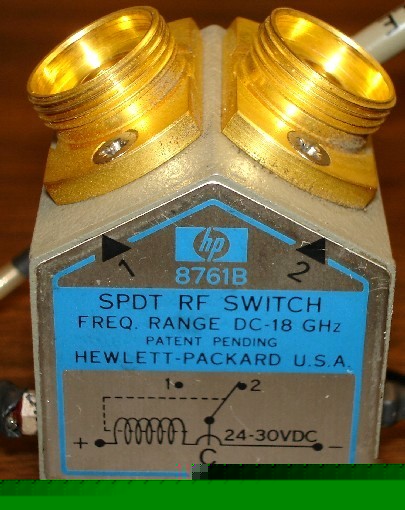

Hp 8761B spdt coxial rf switch, dc 18GHZ, apc-7, OPT444


7mm (APC-7) for UT-250 Coax Connections for all ports The Agilent 8761B is a single-pole, double-throw coaxial switch with excellent electrical and mechanical characteristics for 50 ohm transmission systems operating from DC to 18 GHz. It features broadband operation, long life, low SWR, excellent repeatability, and magnetic latching solenoids. The Agilent 8761B switch is small and lightweight, making it ideal for applications where space is limited. Because of its versatility and excellent electrical performance, it is well suited for automated testing and systems applications.
* Frequemcy Range: DC to 18GHz
* Break-before-make Latching Solenoid
* Excellent repeatability (typically 0.03 dB after 1,000,000 cycles)
* Insertion loss: < 0.5 dB to 12.4 GHz, < 0.8 dB to 18 GHz
* Isolation: > 50 dB to 12.4 GHz, > 45 to 18 GHz
* Solenoid Voltage: 24-30VDC
