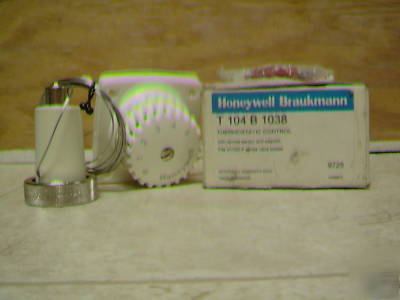

Honeywell T104B1038 thermostatic radiator valve
High Capacity Thermostatic Radiator ValvesProvide precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam through free-standing radiators, convectors and other heating units with high capacity requirements.Continually monitor and adjust room temperature for consistent comfort and relief from underheating and overheating.Designed with the higher capacity normally required by U.S.A. heating systems.Valve seat disc, which is made of resilient material (EPDM), ensures tight shutoff on steam or hot water systems.Nickel-plated bronze casted body with working parts in cartridge insert for ease of service.Controls include sensor, setpoint dial and valve actuator; components may be integral or connected by capillary tubes.Require no electrical connections.All working parts are replaceable using service tool (MT100C1011) while valve remains in service, in-line, under pressure.Valve normally open without control mounted.Valves may also be used with MV110 Electric Zone Valve Actuator.Meet ASHRAE Standard 102-1989.T104B1038Product Specifications For Valve V110 Sensor (Integral or Remote) Remote Setpoint (Integral or Remote) Remote Capillary Length 6 ft 8 in. (2 mm) Temperature Range F 48 F to 79 F Temperature Range C 9 C to 26 C Application Type Controller with combined remote setpoint and sensor mounted on a wall. Setpoint/sensor connect with a capillary tube to an actuator, which mounts on the valve body. For V110 valves. Collar Diameter (in.) 1 19/32 in. Collar Diameter (mm) 40 mm Description Controller with combined remote setpoint and senso
