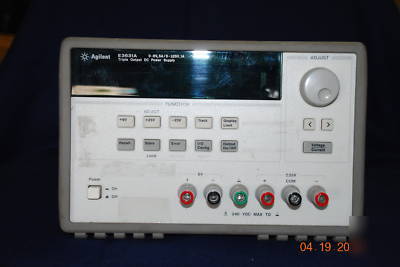

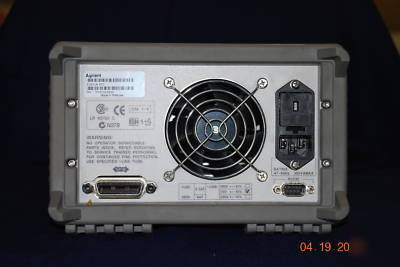

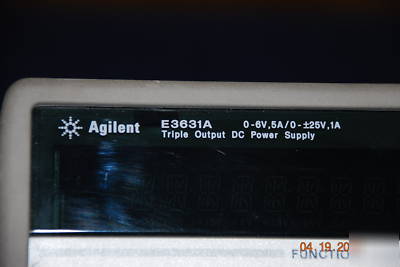

Agilent E3631A triple output power supply
Agilent E3631A Triple Output Power Supply
In good physical and working condition
As seen in the picture, no accessories included
Agilent basic DC power supplies offer essential features for a tight budget. The triple output, 80 W, GPIB, E3631A provides small, compact size for bench use; low output ripple and noise; built-in measurements and basic programmable features with GPIB and RS232 interface. This clean and reliable supply is designed for general purpose applications; and combines convenient benchtop capabilities with flexible system features in a compact, multi-output package.
* Output 1: 0 to 6 V, 0 to 5 A
* Output 2: 0 to +25 V, 0 to 1 A
* Output 3: 0 to -25 V, 0 to 1 A
* Voltage: 0.05% + 20 mV, 0.05% + 20 mV, 0.1% + 5 mV
* + Current: 0.15% + 4 mA, 0.15% + 4 mA, 0.2% + 10 mA
* Normal Mode Voltage: <350 Vrms/ 2 mV p-p, <350 V rms/2 mV p-p, <350 V rms/2 mV p-p
* Normal-mode current: <500 A rms, <500 A rms, <2 mA rms
* Common-mode current: <1.5 A rms, <1.5 A rms, <1.5 A rms
Readback Accuracy at 25 C 5 C
* Voltage: 0.05% + 10 mV, 0.05% + 10 mV, 0.1% + 5 mV
* Current: 0.15% + 4 mA, 0.15% + 4 mA, 0.2% + 10 mA
